Comparing HDMI Extenders, Splitters, and Modulators

In this day and age transmitting high-quality video or audio signals to various rooms, or even entire buildings is more crucial than ever. When you’re setting up your home theater, putting up an entertainment bar with several screens, or managing the AV systems at the school setting, understanding how to effectively to distribute HDMI signals can affect the experience for users. That’s where equipment like HDMI expanders, splitters and modulators are essential. Each one has its own purpose, and picking the appropriate one will depend on your objectives, infrastructure and budget.

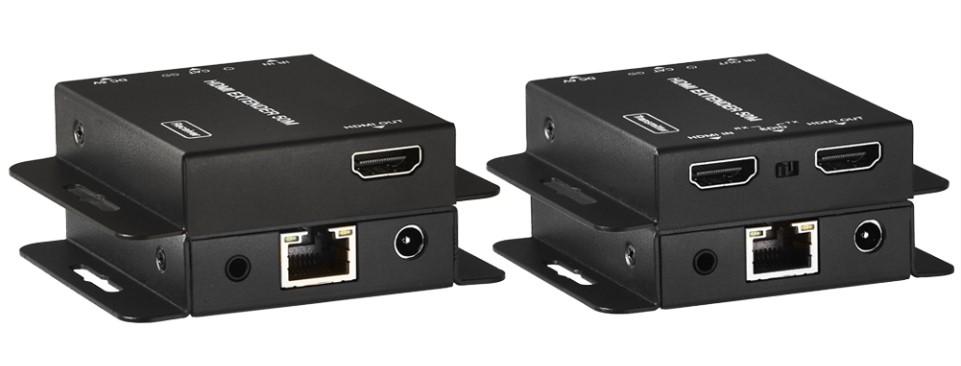

What Are HDMI Extenders?

HDMI extenders permit users to extend HDMI signals across long distances by using various kinds of cabling, such as Cat5e, Cat6, or fiber optic. Conventional HDMI cables are restricted in their distance (typically less than 50 feet) prior to signal degradation. Extenders address this issue by utilizing transmitter-receiver pairings to transfer the signal over larger distances, often up to several hundred feet.

This is especially useful for environments such as conference rooms or digital signage installations in which the device that is used to create the display (e.g. or a media player such as a Blu-ray player) is located far from the screen. Modern extenders can also accommodate the resolution of 4K, HDR or even IR passing through to enable remote control at the other end of.

What Are HDMI Splitters?

HDMI splitters accomplish exactly what they sound like: they take one HDMI input and distribute it on multiple outputs. This is ideal if you need to display the same content on several screens at the same time for example, in classrooms, retail spaces or bars that offer sports.

There are two primary kinds of splitters:

• Passive Splitters They are easy and affordable, however they could be affected by signal loss.

• powered (Active) Dividers They maintain the signal’s strength, and they are typically more reliable for long cable lengths.

A limitation of this is the HDMI splitters can’t resolve distance issues by themselves. You’ll require high-end cables or mix them with extenders to make larger installations.

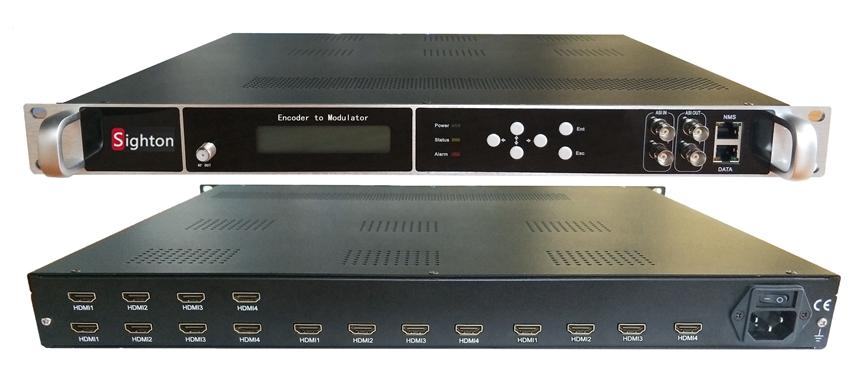

What Are HDMI Modulators?

HDMI modulators are frequently not understood, but they provide a unique and effective solution. Instead of directly dividing or extending HDMI signals in a modulator, it transforms HDMI signals HDMI output into an RF digital signal that can be transmitted via the standard coaxial cable. This enables the signal to be used via any TV that is tuned to a specific channel, similar to the way traditional TV broadcasts function.

This technique is particularly well-liked in older buildings connected to coaxial infrastructure. It’s an economical way to broadcast content to multiple TVs without wiring the entire building by using HDMI cable or Cat6. HDMI modulators are often employed in churches, hotels and hospitals, as well as multi-TV installations.

If you’re new to the technology and want to deep look at how it functions and why it’s growing in popularity and increasing in popularity, this thorough guide to HDMI modulators provides a comprehensive breakdown of everything from function to applications in real life.

Pros and Cons Comparison

Which One Should You Use?

The best choice is contingent on the specific requirements of your situation:

• Make use of the HDMI splitter for when you want for mirroring the exact content to several displays nearby and also have cable runs that are short.

• Utilize the HDMI extender in order to connect longer distances between an input device and a display, particularly if concealing cables is essential.

• Utilize the HDMI modulator for distribution to a lot of TVs, particularly in areas where coaxial cable is already present or retrofitting HDMI lines would be costly or unpractical.

Each tool addresses a distinct issue, and in certain situations, the combination of them can result in the most efficient configuration. An extender, for instance, may work with a splitter in multi-room AV.

Final Thoughts

In terms of AV distribution, knowing your system and delivery objectives is crucial. HDMI splitters, extenders, and modulators are not interchangeable–they each serve a specific role. Choose according to your layout and signal quality requirements and the scalability requirements. If you’re thinking about the possibility of a modulator being suitable for your needs be sure to check out this deep-dive article that explains the importance of modulators in the modern AV system.
